Photocells with flash lamp

: PF5102

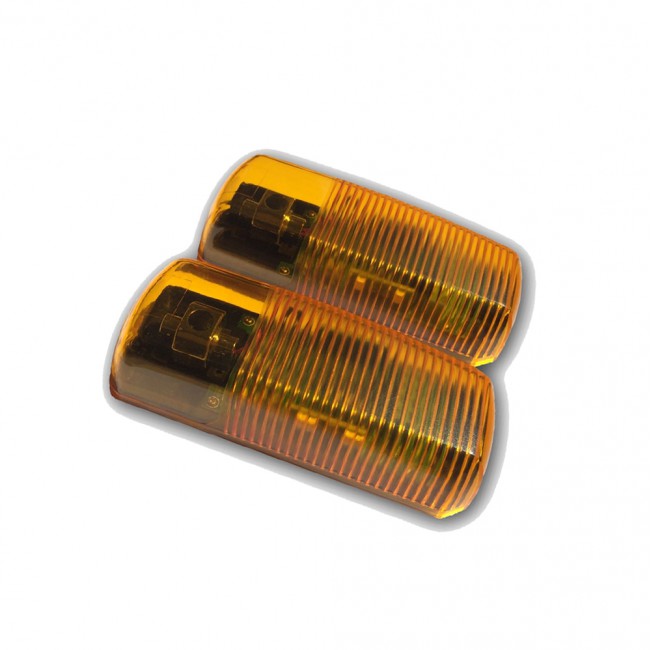

Gate photocell with LED flash lamp

Robust photocell with LED flash lamp in one housing for any gate control application.
  • Photocells and LED flash lamp in one housing
  • Internally adjustable angle of the photo beam
  • Receiver range up to 15 m
Working voltage 12~24 VAC/DC
Working current (24VDC) emiter: ≤15 mA, receiver: ≤30 mA
Photocell wavelength 940 nm
Angle of opposite emission ≤±5
Receiver range ≥15 m
Adjustable angle of internal rotation system 0~180º
Working temperature -20 ℃~+60 ℃
Relay contact loading capacity 1 A/30 VDC
Waterproof grade IP54

127*50*35 mm

It is possible to connect external flash lamp input signal (12 V-24 VAC/DC).
PF5102 user manual download
