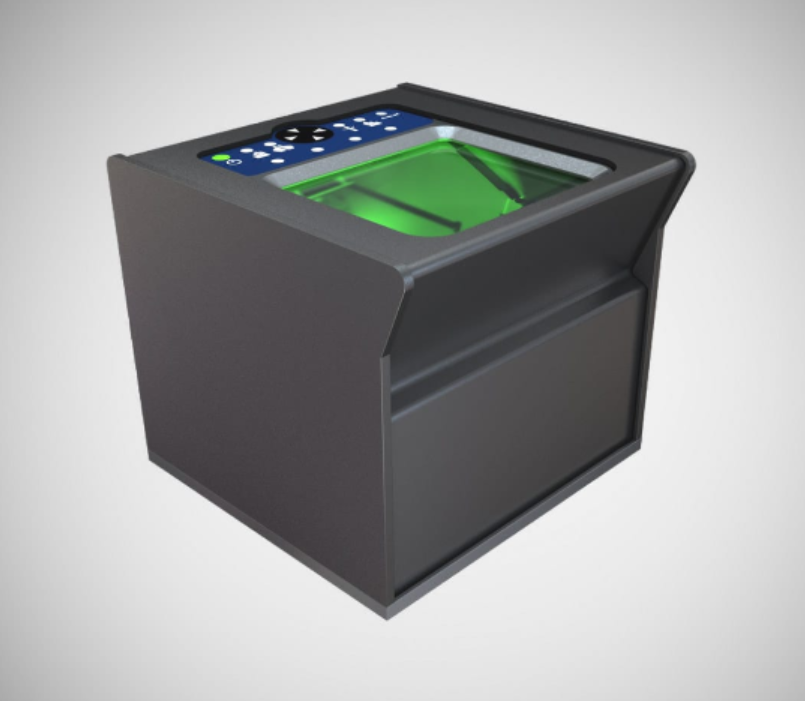

AFS 510 - 4+4+2 flat or roll fingerprint scanner

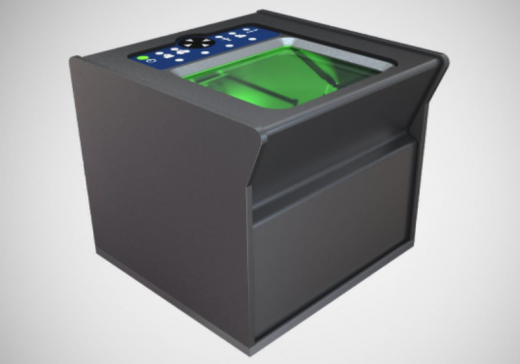

AFS 510 is a sturdy yet compact, easy-to-use, professional ten-print live scan solution that captures flat and rolled fingerprints. It provides fast, forensic quality fingerprint capturing. The enrolled fingerprint images comply with U.S. strict biometric standards: the FBI IAFIS IQS Appendix F. Auto-capture function and real-time NIST quality check with sequence verification ensures the capture of high-quality prints. AFS510 comes with an SDK package that ensures easy integration into any IT environment.
AFS 510 offers:
  • Forensic quality fingerprint enrollment
  • Smart user interface with illuminated pictograms
  • Convenient fingerprint capturing with large scanning platen and ergonomic design

AFS 510 provides solution for common problems by:
  • Automatic check of correct sequence and vertical position
  • Fully configurable and customizable capture processing
  • USB interface for both power and data
  • All functions included in a unified SDK for easy integration with any system

AFS 510 provides 4-4-2 flat or single rolled, forensic-quality fingerprints in high resolution (500 PPI) that are compliant with the FBI’s IAFIS App. F. The device is factory calibrated for auto-capture and auto-segmentation, supported by real-time NFIQ quality control, saves the images in NIST WSQ format and compatible with various Windows and Linux platforms and BioAPI.


Resolution 500 PPI
Platen size 91 mm × 78 mm

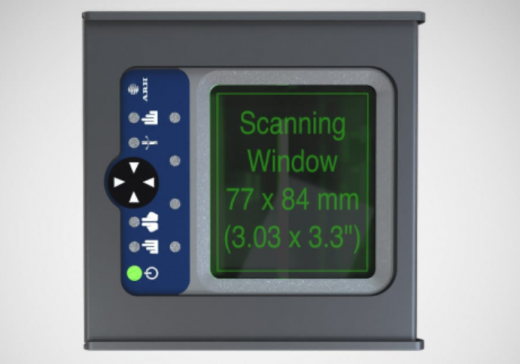

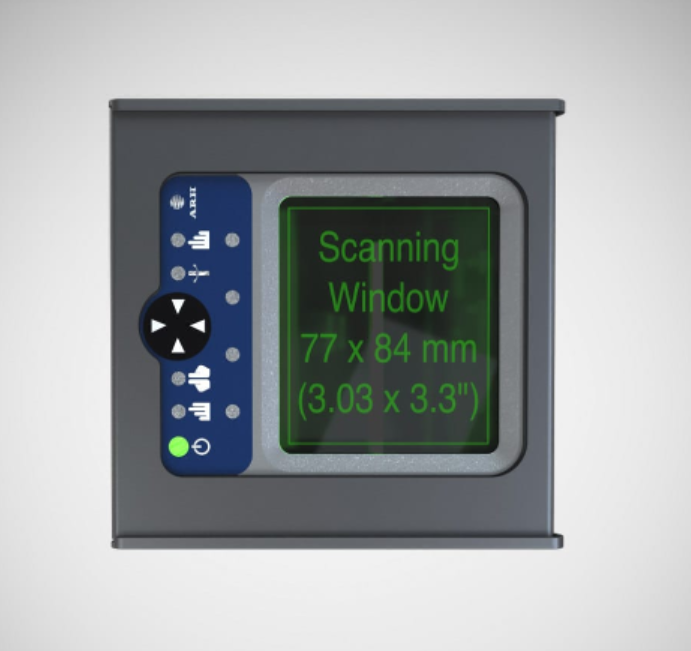

Active platen area 84 mm × 77 mm
Capture Automatic: single fingerprint rolls, single fingerprint flats, four finger slaps, two thumbs
LED indicators Smart multicolor LED indicator system
Interface USB2.0
Power Via USB or external power supply
Compliances ANSI/NIST-ITL-1-2000
ISO/IEC 19794-4
ISO/IEC 19784-1:2005 (BioApi 2.0)
NFIQ (NIST Finger Image Quality)
Certifications FBI IAFIS IQS Appendix F
FBI v3.1 certified WSQ
SDK – Feature-rich SDK that includes auto capture
image quality checks
automatic segmentation
sequence check
Capture format WSQ, PNG, BMP, JPEG and JPEG2000
Operating systems Windows 8.1, 8, 7, Vista (32/64 bit, WHQL certified)
32/64 bit Server 2008 R2 and Server 2003
Linux Ubuntu, Debian, OpenSUSE, CentOS
Programming Languages C/C++, C#, Visual Basic 6.0, Delphi, VB.NET, Java

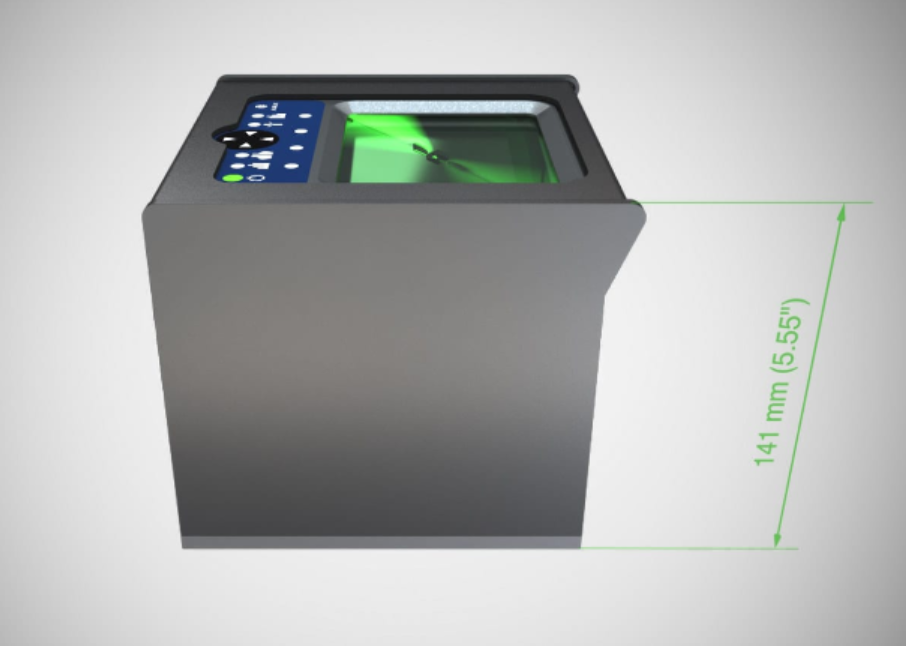

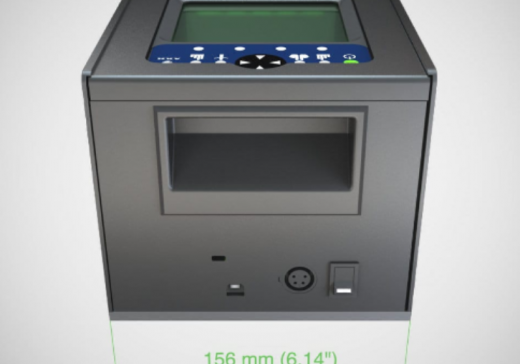

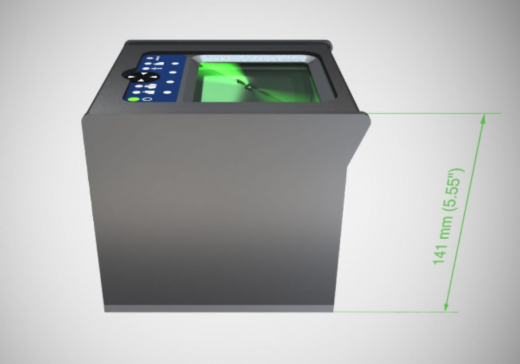

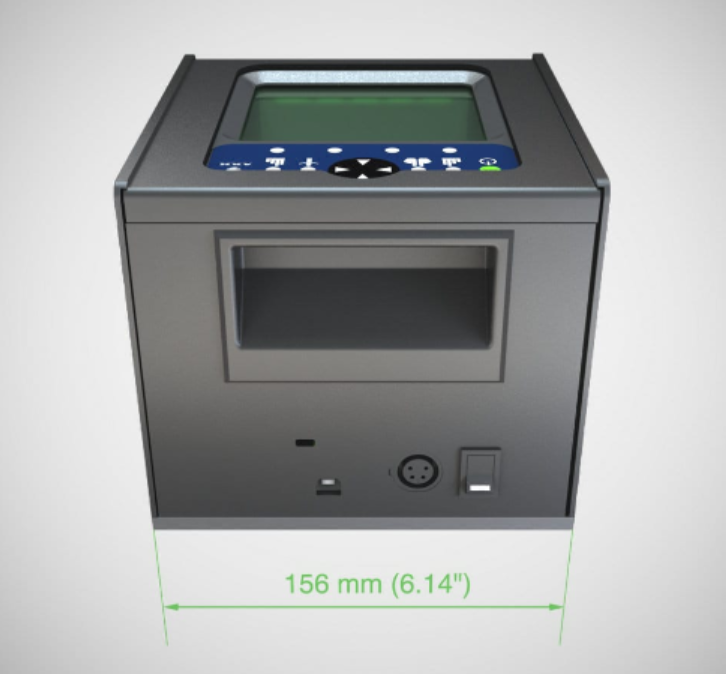

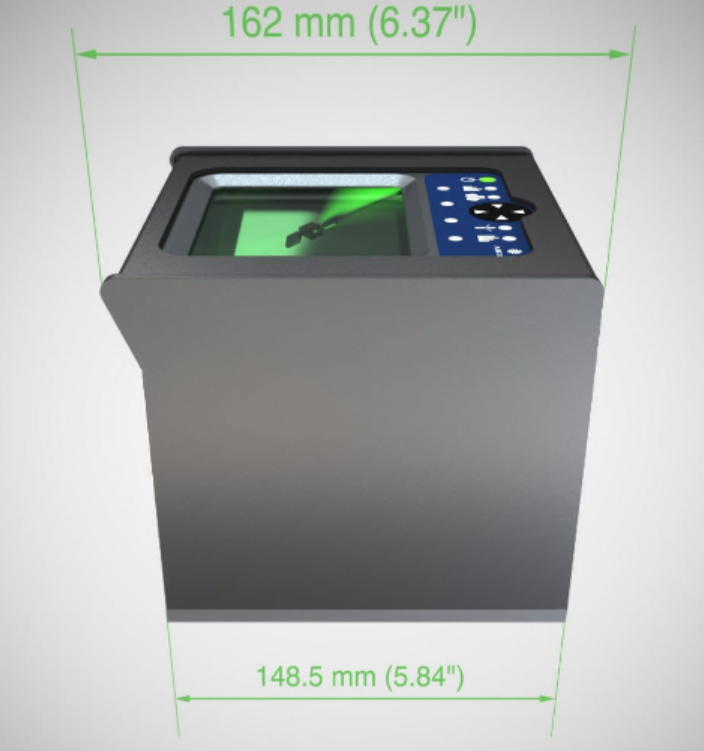

Dimensions 156 mm × 141 mm × 162 mm
Weight 3.0 kg
Case 100 % protective metal case
Operating temperature +5 °C to +40 °C
Operating humidity 0-95 % (non-condensing)
Security Kensington® security slot
Warranty 2-year warranty, upgradeable
